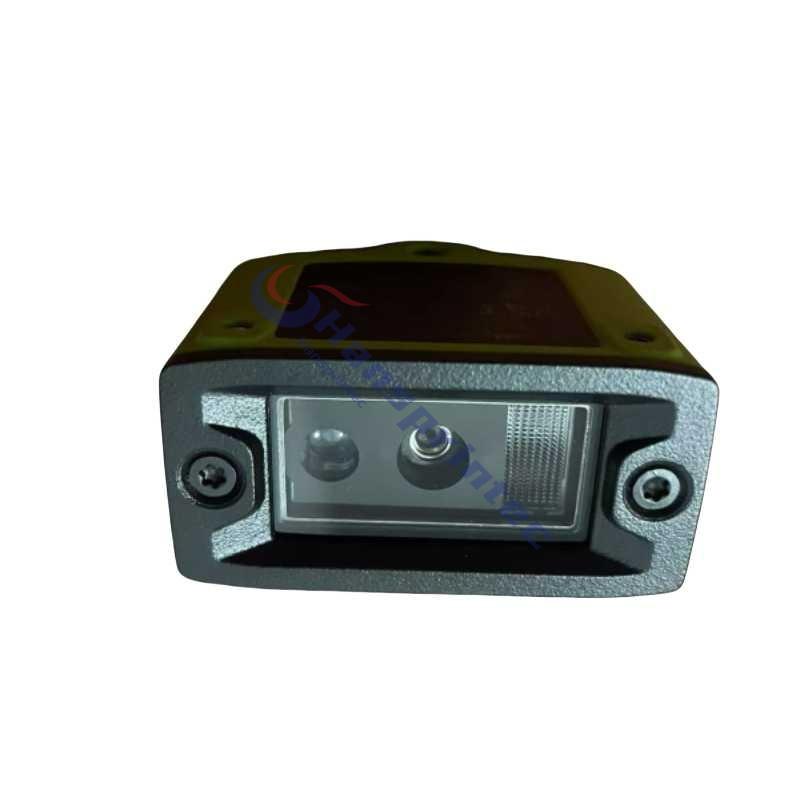

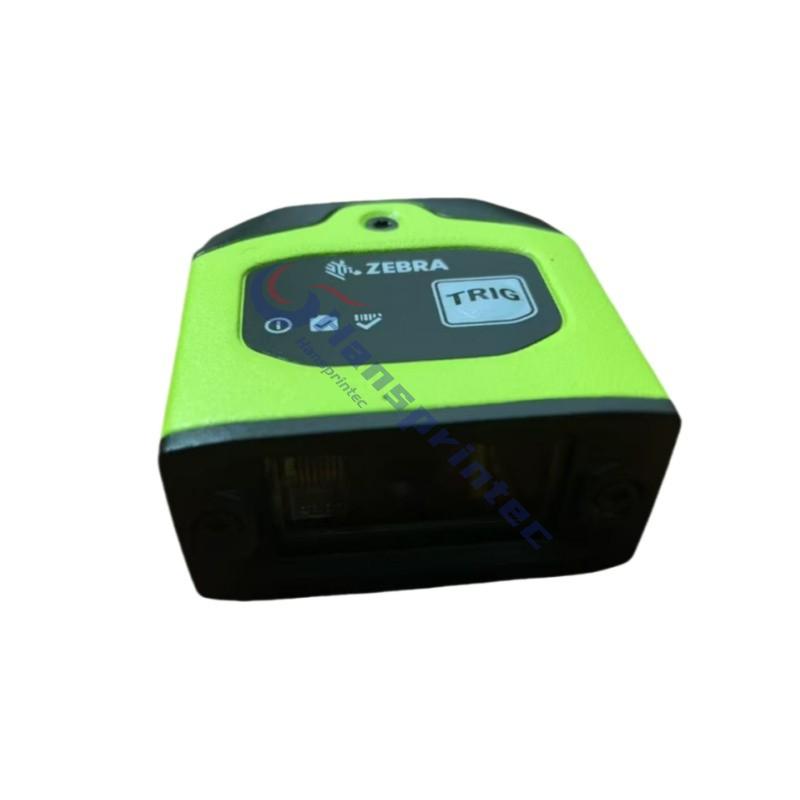

Zebra Fixed Barcode Scanner FS10-SR10F1-1C00W
- Product Item : FS10
- Category： Barcode scanner
- Product Name:Fixed Industrial Scanners
- Part Number:FS10-SR10F1-1C00W
- Delivery Time:1-5 days
Zebra Fixed Barcode Scanner FS10-SR10F1-1C00W
Key Features
Compact & Robust Design: Ultra-slim aluminum housing (IP65-rated) for durability in harsh industrial environments, resistant to chemicals, oils, and dust.
High-Speed Scanning: Captures 60 frames per second with a 1.2 MP CMOS sensor, ensuring rapid and reliable 1D/2D/DPM/OCR code reading.
Plug-and-Play Integration: USB-C 2.0 connectivity for instant deployment on workstations, laptops, or tablets.
Advanced Imaging: ImagePerfect+ technology captures three optimized images per item, enhancing readability of damaged or poorly printed codes.
Flexible Software: Zebra Aurora™ platform simplifies setup, management, and scalability, with optional licenses for additional symbologies or speed upgrades.
Product Overview
The Zebra FS10-SR10F1-1C00W is a premium fixed-mount industrial barcode scanner engineered for high-volume tracking in logistics, retail, and manufacturing. With its 35° FOV lens (SR series), it excels in mid-range scanning (up to 61 cm/24 in for 20 mil Code 128). This model integrates Zebra’s PRZM Intelligent Imaging and Golden Image Compare tools to ensure consistent accuracy, even for codes on reflective surfaces or fast-moving conveyor belts
Ideal Applications:
-
Warehouse inventory management
-
Retail checkout automation
-
Production line traceability
-
Pharmaceutical/medical device tracking
Technical Specifications
| Parameter | Details |
|---|---|
| Model | FS10-SR10F1-1C00W (SR series with 35° FOV lens) |
| Scan Technology | 1D/2D/DPM/OCR (supports Code 128, Data Matrix, QR, OCR-A/B, etc.) |
| Sensor | 1.2 MP CMOS, 1280 x 800 resolution, global shutter |
| Lighting | Dual LEDs: 660 nm red + 2700K white for optimal illumination |
| Interface | USB 2.0 Type-C (locking connector) |
| Environmental | IP65-rated, operates at 0°C–40°C, withstands vibrations/shocks |
| Dimensions | 25.4 mm (H) x 51 mm (D) x 43 mm (W); 120 g weight |
| Warranty | 1-year limited (extendable for bulk orders) |
Zebra Aurora™ Dashboard: Streamlines device management via a web-based interface, reducing hardware costs and training time.
ManyCode Mode: Simultaneously scans multiple barcode types for complex workflows.
Lifetime Maintenance: Optional extended support plans for distributors
FAQ
Q: Is the FS10-SR10F1 compatible with legacy Zebra systems?
A: Yes. It integrates seamlessly with Zebra’s ecosystem, including Aurora software.
Q: Can it read codes on curved surfaces?
A: Yes. PRZM imaging adapts to challenging surfaces like metal or glass.
Q: What industries benefit most from this scanner?
A: Logistics, retail, pharmaceuticals, and automotive manufacturing
