Product Name: Thermal Printhead
Model : 6330 6530 53mm
Category：Videojet Printhead
Part Number: 407933
Delivery Time: 1-3 days
Warranty:3 months/30km

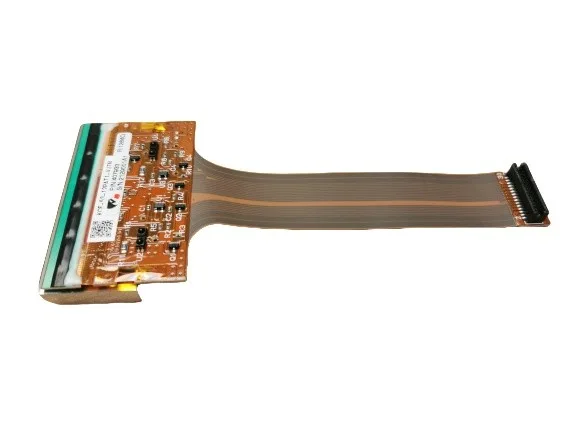

The 407933 is the genuine OEM 300 DPI thermal transfer overprinting (TTO) printhead for the Videojet DataFlex 6330 and Videojet DataFlex 6530 industrial coders, featuring a 53mm print width. Also referenced by the Kyocera part number KCE-53-12PAT1-VJTN, this printhead is the precision component responsible for printing batch codes, expiry dates, lot numbers, barcodes, and variable data directly onto flexible packaging films, pouches, and labels. Replacing a worn printhead with the genuine 407933 restores full print clarity and code reliability on your Videojet 6330 or 6530 TTO coder — keeping your packaging line running without interruption.
The Videojet DataFlex 6330 and 6530 are two of the most widely deployed TTO coders across food, beverage, cosmetics, and pharmaceutical packaging environments globally. The 6330 is a medium-speed coder delivering up to 250 ppm, while the 6530 is a high-speed coder capable of up to 1000mm/s print speed and 700 ppm throughput — both rely on the 407933 printhead for the 53mm configuration.
OEM Part Number: 407933
Also Known As: KCE-53-12PAT1-VJTN
Compatible Printers: Videojet DataFlex 6330, Videojet DataFlex 6530
Print Technology: Thermal Transfer Overprinting (TTO)
Print Width: 53mm
Resolution: 300 DPI (12 dots/mm)
Max Print Speed: Up to 1000mm/s (Videojet 6530) / Up to 250 ppm (Videojet 6330)
Condition: Brand New, Genuine OEM, Sealed Packaging
Warranty: 3 months or 30km print usage, whichever comes first
Lead Time: 1–3 Business Days
MOQ: 1 Unit (Bulk Orders Available)
The 407933 is a genuine Videojet OEM printhead manufactured by Kyocera (KCE-53-12PAT1-VJTN) to the exact thermal element specifications of the DataFlex 6330 and 6530 coders. It arrives in original packaging with full OEM warranty, ensuring direct drop-in installation with no calibration, no compatibility guesswork, and no risk to your packaging line uptime.
At 300 DPI across a 53mm print width, the 407933 delivers crisp, scan-reliable barcodes, legible expiry dates, lot numbers, and brand traceability codes on flexible packaging films, pouches, foil lidding, and labels. The 300 DPI resolution ensures compliance with GS1 barcode standards and retail scanning requirements.
The 407933 is engineered to perform reliably in both the medium-speed DataFlex 6330 (up to 250 ppm) and the high-speed DataFlex 6530 (up to 1000mm/s, 700 ppm) — making it a suitable replacement for the full range of production line speeds where these coders are deployed, from intermittent to continuous high-volume packaging operations.
The 407933 features smart heating element protection that prevents burnout and supports stable printing over extended print distances. This wear-resistant construction maintains consistent output quality across long production runs, reducing the frequency of printhead replacements and the associated downtime costs.
Food and Beverage – The Videojet DataFlex 6330 and 6530 are industry-standard TTO coders for flexible packaging lines in bakery, dairy, snack, ready-meal, and beverage production. The 407933 printhead maintains the code clarity required for best-before date, batch number, and allergen compliance labeling on flow-wrap, pillow-pack, and pouch packaging.
Pharmaceuticals – Pharmaceutical manufacturers use the DataFlex 6530 for high-speed serialization and compliance coding on blister foil, sachet packaging, and flexible primary packaging where GS1 barcode verifiability and regulatory audit-readiness are mandatory. The 407933 printhead quality directly supports these requirements.
Cosmetics and Personal Care – Beauty and personal care brands rely on TTO coding for date coding and batch traceability on sachets, foil pouches, and flexible film packaging. The 300 DPI output of the 407933 ensures brand-quality text and graphics alongside variable compliance data.
Industrial and Chemical Packaging – The DataFlex 6330 is also deployed in industrial packaging environments for coding on film-wrapped products, bags, and flexible pouches where reliable batch and lot number printing is required for supply chain traceability.
The 407933 printhead is a wear component that degrades under continuous TTO operation. Replace it when you notice any of the following on your DataFlex 6330 or 6530 output:
Faded, uneven, or inconsistent print density across the 53mm print width
White streaks, voids, or missing elements in date codes, barcodes, or text fields
Barcode scan failures or GS1 grade degradation at the packaging line verifier
Increased ribbon waste due to uneven heat distribution across the printhead element
Print quality alerts or maintenance notifications on the Videojet coder display
Proactive printhead replacement before complete failure prevents unplanned line stoppages and keeps your TTO coding audit-ready at all times.
Is 407933 compatible with both the Videojet 6330 and 6530?
Yes. The 407933 is the OEM 53mm printhead for both the Videojet DataFlex 6330 and DataFlex 6530 coders. Both printers use the same 53mm printhead in the standard configuration.
What is the Kyocera part number for the Videojet 407933 printhead?
The 407933 is manufactured by Kyocera and is also referenced by the part number KCE-53-12PAT1-VJTN. Both references describe the same genuine OEM 53mm 300 DPI TTO printhead.
Is the 407933 also compatible with the Linx TT750?
Yes. The Linx TT750 TTO coder uses the same 53mm printhead as the Videojet DataFlex 6330 and 6530. The 407933 / KCE-53-12PAT1-VJTN is a compatible replacement for the Linx TT750 53mm configuration. Contact us to confirm compatibility with your specific Linx TT750 model before ordering.
What is the difference between the 53mm and 32mm Videojet 6330 printhead?
The Videojet DataFlex 6330 is available in two print widths — 32mm and 53mm. The 407933 is the 53mm version. The 32mm version uses a different part number. Choose the print width that matches your current printer configuration and label width requirements.
Do you offer bulk pricing or international export shipping?
Yes. We support single unit orders and bulk purchases with full commercial documentation for international export via DHL, FedEx, and UPS. Contact us for volume pricing and shipping options on the 407933 printhead.
✅ Specialists in OEM thermal printheads for Videojet, Domino, Markem-Imaje, Zebra, and more
✅ In-stock inventory with 1–3 business day dispatch via DHL, FedEx, and UPS worldwide
✅ Competitive B2B pricing for single units and bulk orders
✅ Trusted by packaging line operators, system integrators, and resellers across 50+ countries
Ready to restore full coding performance on your Videojet DataFlex 6330 or 6530? Contact our team today for pricing, stock availability, and international shipping options on the genuine 407933 OEM printhead. Bulk orders and export documentation are available on request.
